Backer Rod

Backer Rod at Systrans Polymers Pvt Ltd

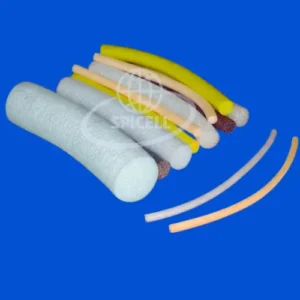

SPICELL EPE Back-Up Rod is a round, square, or rectangular shaped extruded foam product with a uniformly distributed closed-cell structure. It features very low compression set and offers an excellent balance of physio-mechanical properties, making it highly suitable for a wide range of sealing and joint applications.

Technical Specification Table

Material
Density
Diameter Range
Water absorption
Temperature Range
Compression Set
Tensile strength
Chemical resistance
Elongation at break
Color
Closed-cell Expanded Polyethylene (EPE)
24-30kg/M3
6-60 Custom sizes available
0.01-0.05 %by volume
(-)30 To (+)70
10% Max.
2.55-6.00 Kg/Cm2
920-940 Kg/M3
45-125%
As per requirement

Standard Test Method ASTM D3575 followed for technical specifications

Technical specification given above indicate attributes of products and are given in good faith and can vary depending upon test and climatic conditions

Key Features and & Benefits

Durability

Chemically inert, UV stable and resistant to fungi

Efficiency

Reduces sealant consumption and prevent three-sided adhesion

Customization

We can customize any shapes like Rectangle, square, triangular or any other shapes desired by customer

Technical Features & Advantages for Construction Industry

Compatible with Polysulfide and Silicone Sealants

Backer rods are engineered to work seamlessly with a wide range of sealants including polysulfide and silicone. This compatibility ensures strong adhesion, proper curing, and long-term joint performance across various construction applications such as expansion joints, glazing systems, and precast panels.

Resistant to Acids and Alkalies

Manufactured using high-quality closed-cell polyethylene foam, backer rods exhibit excellent resistance to chemical exposure including acids and alkalies. This makes them suitable for use in harsh environments like industrial structures, infrastructure projects, and areas exposed to chemical contact.

Ease of Installation

Backer rods are lightweight, flexible, and easy to handle, allowing quick and efficient installation. They can be easily inserted into joints of varying widths and depths without the need for specialized tools, reducing labor time and improving on-site productivity.

Excellent Resilience to the Groove

Designed with superior elasticity, backer rods adapt perfectly to joint grooves, maintaining their shape and providing consistent support to the sealant. This resilience helps in absorbing movement and prevents sealant deformation over time.

Prevents Seepage of Water and Moisture

Backer rods act as an effective barrier that helps prevent water and moisture ingress into joints. When used with appropriate sealants, they enhance waterproofing performance, making them ideal for curtain walls, window frames, and external construction joints.

Allows Joint Movement

Backer rods support dynamic joint movement caused by temperature changes, structural shifts, or load variations. They help maintain the correct sealant depth and flexibility, ensuring that joints can expand and contract without cracking or failure.

Product Range

Need a Different size? Custom sizing available on request.

Diameter
Quantity Per Bag
6 MM10000 Mtrs
8 MM7000 Mtrs
10 MM6000 Mtrs
12 MM4000 Mtrs
15 MM2600 Mtrs
18 MM2000 Mtrs
20 MM1500 Mtrs
25 MM1000 Mtrs
30 MM700 Mtrs
35 MM600 Mtrs
40 MM500 Mtrs
45 MM450 Mtrs
50 MM300 Mtrs
55 MM300 Mtrs
60 MM250 Mtrs

Technical Features & Advantages for Construction Industry

Application List

Not sure which material suits your construction requirements? Consult with our experts for the best solution.
